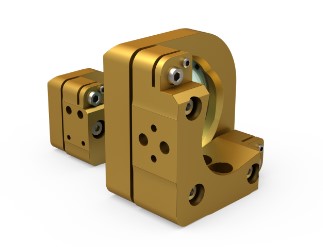

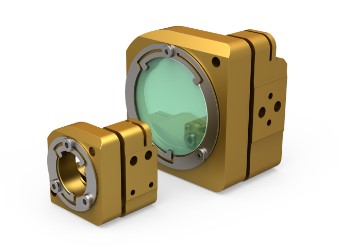

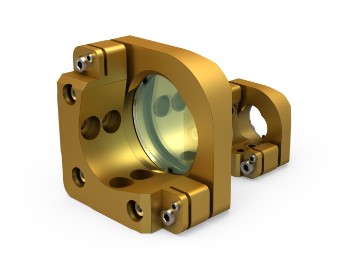

Type SD Industrial Mirror Mounts
Type SD industrial precisely adjustable mirror mount provides excellent performance for demanding applications.
The design ensures stress-free low distortion mounting for optics, excellent holding force and pointing stability. Type SD mount allows precise mirror adjustment in both X and Y directions. 100TPI micro screws provide accurate adjustment and easily accessible fully integrated locking mechanism ensuring excellent angle stability.

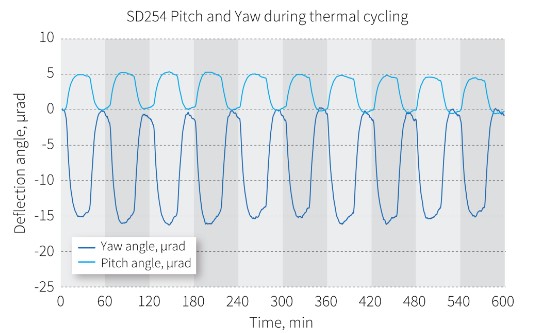

Depending on the application, optics can be held either by specially designed ZeroDef flexure ring or by semi-permanent optical adhesives. Type SD mount is precisely machined from special alloys to provide optimum beam pointing stability over changing environmental conditions such as temperature and transportation shock as well as vibrations and humidity.
Features
- Vacuum compatible
- Ultra-compact design
- Two adjusters hex driven design
- Reliable and easy to use the lock mechanism
- Fast & easy replacement of optics using ZeroDef flexure ring (RS)
- Stable and distortion-free mounting of optics
Feel free to reach out to us for more information or any inquiries you may have at: info@altechna.com. We’re here to assist you!
