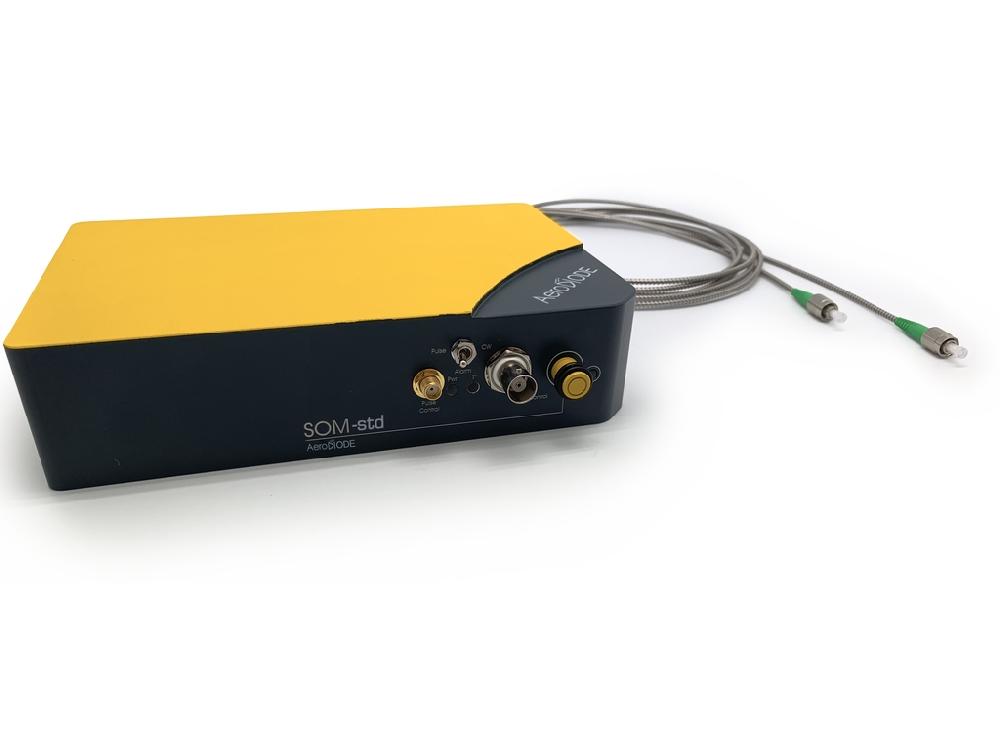

Fiber modulator: a high speed intensity modulator and optical switch


-. Lossless device
-. High dynamic range : >48 dB
-. Very low noise and stable signals
-. High speed : down to 500 ps rise/fall time
-. User design pulse shape (SOM-Shape only)
-. High extinction ratio : >50 dB
-. No wavelength evolution along the pulse duration
Application
Download
관심제품등록

Product Info


This fiber modulator is a high switching speed module. It operates as a lossless optical isolation switch, a full-range variable optical attenuator (VOA), or an optical shutter.

Key Features :

  • Lossless device
  • High dynamic range : >48 dB
  • Very low noise and stable signals
  • High speed : down to 500 ps rise/fall time
  • User design pulse shape (SOM-Shape only)
  • High extinction ratio : >50 dB
  • No wavelength evolution along the pulse duration

Applications of this fiber modulator include laser seeding, LIDAR testing, etc.

The GUI software lets the user have total control of all module functions. It includes several libraries for software integration (LabVIEW VIs, DLLs, Hexa etc.)

This fiber modulator works alone or in series with other products in our range like :

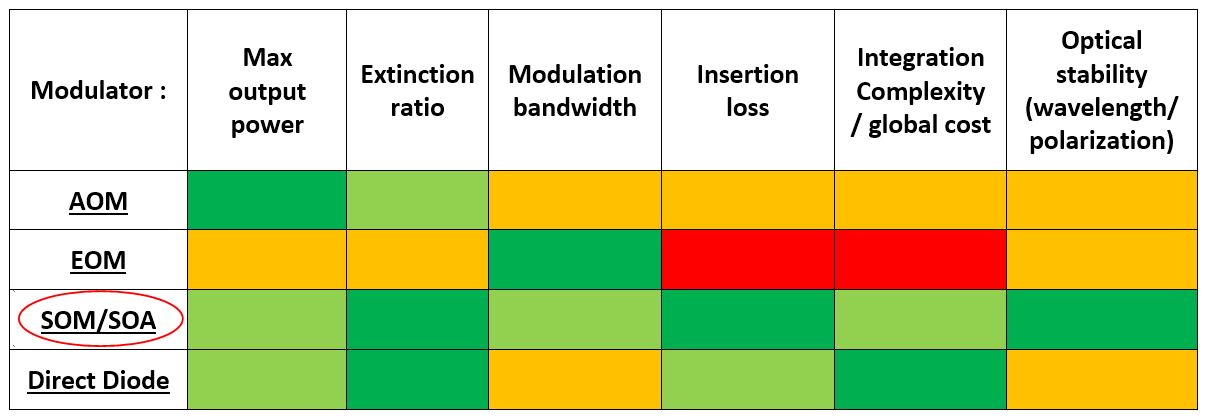

Fiber optic modulators comparison
SOM are SOA-based fiber modulators devices which have many advantages compared with other fiber modulation technologies



See our detailed Tutorials on :

  • High speed fiber modulation : Fiber modulation basics
  • Fiber lasers : Fiber laser basics

SOM is an alternative to Acousto Optics Modulators (for example G&H) or Electro Optics Modulators (for example iXBlue).



 SOM-stdSOM-HPP (High Pulse Performance)SOM-Shape (User design nanosecond pulse shape)
WavelengthAny wavelength to be selected between 700 nm and 1700 nm (see wavelength table on datasheet (last page)
Optical bandwidth (nm)From 20 nm to 110 nm to be selected (see wavelength table on datasheet)
Extinction ration (dB, typ)50 dB40 dB
Max input powerSee wavelength table on datasheet (last page)
Switching speed (typ)1 ns<1 ns2 ns
Dynamic range (up to)60 dB48 dB
Small signal gainFrom 22 to 40 dB (see wavelength table next page)
Trigger-to-pulse Jitter / internal trigger Jitter<20 ps / <20 ps<8 ps / <8 ps<2 ns / <100 ps
Pulse shapingOn-Off onlyYes
CW offset (in pulse mode)noyesno
Max repetition rate10 MHz250 MHz20 MHz
Compatibilities & LibrariesUSB - Windows 7/10 ; DLLs - Hexa - Labview - Python
Dimensions (mm)190*150*45208*100*37
Power supply12 V (110 - 220 V adaptator included)24 V (110-220 V adaptator included)
