1500mA Fiber laser diode driver : two channels & other dedicated functionalities


-. Butterfly laser diode in CW regime up to 1.5 Amp with very low noise floor
-. Butterfly laser diode for pulsing 1 nsec to CW with internal pulse duration and repetition rate adjustments
-. 2 Photodiodes to measure CW optical power with high precision
-. 1 Photodiode to measure the repetition rate of an optical signal
-. 2 Photodiodes to measure the average optical power of a pulsed signal
-. 1 Photodiode to measure the optical back reflected power in CW or pulse regime
-. 20 different alarms with potential interlock effects
-. Special pump pulse regimes for low repetition rate or pulse-on-demand configurations
-. Special interconnections with ALPhANOV Multiboard Series to allow complete integration of complex
fiber laser architectures (MOPA, Modelocked, Q-Switch, EOM modulation etc.)
-. Smart control (USB interface to drive simultaneously several modules from AERODIODE laser electronicsseries)
Application
Download
관심제품등록

Product Info

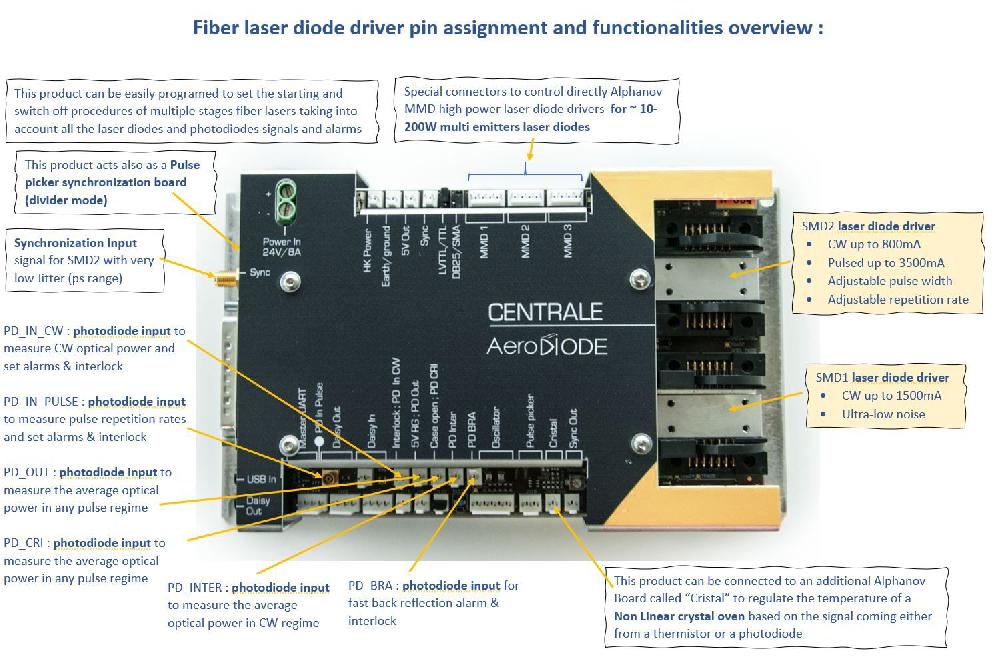

These industry leading  fiber laser diode drivers with pulse & CW performances make fiber laser development much more efficient. Designed specifically for fiber laser architectures and product integration, these dual central electronic controls and mounting modules allow complete control of up to two single-mode butterfly packaged laser diodes, six photodiodes and many other external devices.

Its fiber laser diode drivers are optimized for single-shot to CW performance with pulse width lengths down to 1 nanosecond and up to 3500mA peak current. It is compatible with fiber laser constraints in term of noise, precision, response time, interlock etc.

It is well suited for nearly any type of fiber laser architectures : Mode-locked, Q Switch, MOPA, EOM modulation, Gain Switch, Microchip oscillators etc.

It provides a simple way to control on / off / and security stages of complex multistage fiber lasers.

This fiber laser diode driver can be easily be connected with other Aerodiode boards, especially :



It is the central element of AeroDIODE Multiboard series which includes more than 20 innovations and makes fiber laser developments very efficient.

Butterfly laser diodes such as Lumentum or 3SP  are perfectly well controlled in CW or pulsed regime.

See our Tutorial : Fiber-Laser-basics to get an overview of all fiber lasers architectures.

Laser diode 1Output current range0 - 1500 mA
Noise level (laser diode dependant)< 0.03 % rms
Adjustment precision (@ 200 mA)0.05 mA
Current stability< 0.01%
Temperature stability< 10 mK
Laser diode 2Peak current range (pulse regime)0 - 3500 mA
CW current range0 - 800 mA
Pulse duration1 ns to CW
Pulse jitter< 10 psec
Pulse repetition rate0 - 250 MHz
Alarm / interlock response time< 2 µsec
