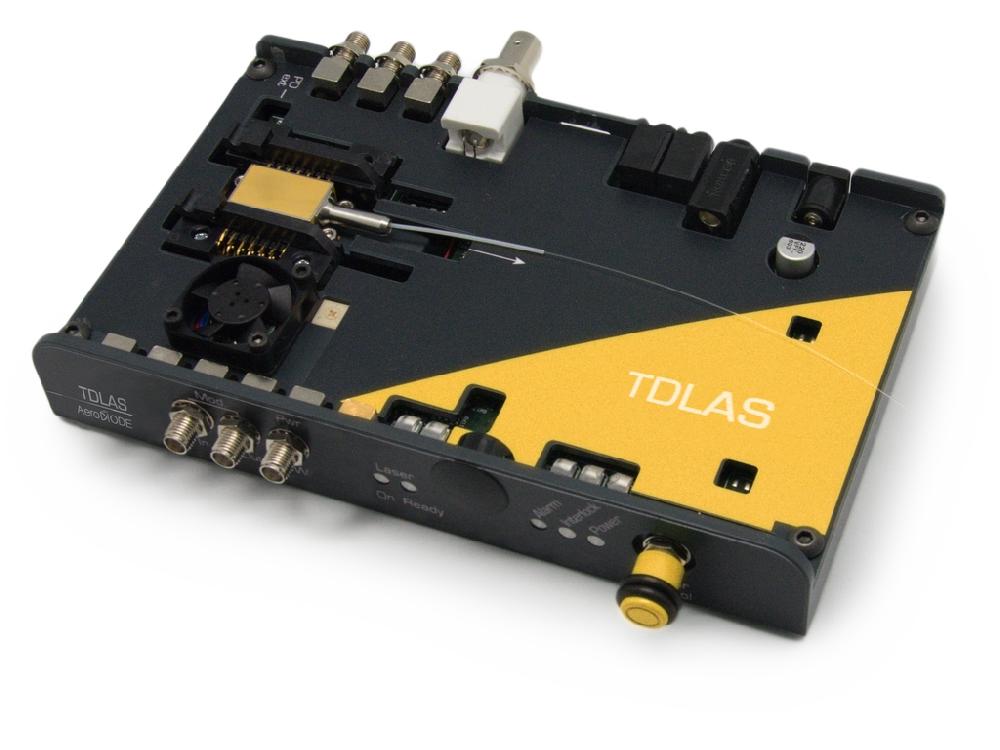

AERODIODE Ultra low noise laser diode driver with TEC control & USB - Available for butterfly laser diodes and other form factors (Type 1 or Type 2 pin configuration) - Noise level comparable with industry lowest noise battery-based drivers - It includes an integrated TEC controller. - A special thermal interface is included which do not require any thermal grease. - Output Current : 0.00 mA – 1500.00 mA (special 2500 mA version available – contact us) - Current set-point resolution (@ 100 mA set-point): 0.025 mA - Temperature stability (typ) : <0.001°C - Internal and external modulation up to 100 kHz (500 kHz prov.) - Output Voltage Maximum: 0 – 24 V - USB, manual & analog (0 – 5 V) power adjustment |
|
| Application | ||
| Download | ||
Product Info
Low noise laser diode driver – Key Features :
- Available for butterfly laser diodes and other form factors (Type 1 or Type 2 pin configuration)
- Noise level comparable with industry lowest noise battery-based drivers
- It includes an integrated TEC controller.
- A special thermal interface is included which do not require any thermal grease.
- Output Current : 0.00 mA – 1500.00 mA (special 2500 mA version available – contact us)
- Current set-point resolution (@ 100 mA set-point): 0.025 mA
- Temperature stability (typ) : <0.001°C
- Internal and external modulation up to 100 kHz (500 kHz prov.)
- Output Voltage Maximum: 0 – 24 V
- USB, manual & analog (0 – 5 V) power adjustment
Applications of this low noise laser diode driver includes fiber laser seeding, gas sensing, TDLAS, cold atoms R&D etc.
The GUI software lets the user have total control of all module functions. It includes several libraries for software integration ((LabVIEW VIs, DLLs, Hexa)
This low noise laser diode driver works alone or in series with other products in our range :
| TDLAS | CCS- (Ultra) low noise | |
|---|---|---|
| Output current | 0 - 1500 mA (contact us for special 2500 mA version) | |
| Set point resolution (@ 100 mA) | 0.025 mA | |
| Output current modulation (External mode) | 0-20 mA/V (adjustable) Bandwidth : 100 kHz (typical 300 kHz) | 0-20 mA/V (adjustable) Bandwidth : 200Hz |
| Output compliance voltage | 0 - 24 V | 5 V |
| Laser diode T° range | 0 - 90 °C | |
| Temperature stability (typ) | < 1mK | |
| TEC current/Voltage | +- 3A / 4.6V | |
| BFM (Back Facet Monitor) | Yes (variable gain) | |
| External photodiode monitoring | Yes (variable gain) | |
| Interface/GUI/libraries | USB / Win 7-10 / Hexa, DLLs, Python (windows and LINUX), LabVIEW | |
| Dimensions (mm) | 170*126.8*32.5 | |
| Power supply | 24 V (110-220 V adaptator included) | |
