1 GS/s 12-Bit PCIe Gen3 Digitizer


1 GS/s Real Time Sampling rate
6.8 GB/s throughput across x8 PCIe Gen3
2 channels sampled at 12 bit resolution
4096 point On-FPGA FFT Engine
8 Gigabytes of on-board Dual-Port Memory
Variable frequency external clock capable
Fixed ±400 mV Input Range
57.1 dB Signal to Noise Ratio
Continuous Streaming Mode
Trigger Input & Trigger Output connectors
Half-Length PCIe Gen3 x8 Card
AlazarDSO Software allows quick start-up
SDK for C/C++, C#, MATLAB, Python and LabVIEW
Support for Windows and Linux
Application Optical Coherence Tomography (OCT)
Ultrasonic & Eddy Current NDT/NDE
RF Signal Recording & Analysis
Terabyte Storage Oscilloscope
High-Resolution Oscilloscope
Spectroscopy
Multi-Channel Transient Recording
Download
관심제품등록

Product Info

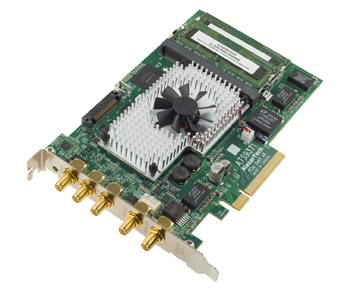

ATS9371 - 12 bit, 1 GS/s

You may be eligible for a 30-Day Try-Before-You-Buy Evaluation program.

You may be eligible for a 30-Day Try-Before-You-Buy Evaluation program.

Click here to find out whether your organization is eligible for this program.
