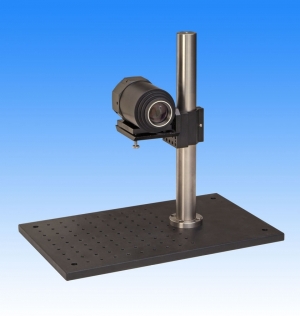

AlignMeter LA Large Aperture optical alignment system |
|
Application | ||
Download |
Product Info
Overview
Large Aperture optical
alignment system.
The system performs
simultaneous measurements of centration (in µm), angular deviations (in mRad)
of the beam with respect to the outer housing or tube, as well as absolute
power.
The system measures CW beams,
and offers portable, fast and accurate beam alignment solution. The usable beam
size is up to 22.5mm and the angle measurement range is ±2° with a resolution
of ± 1 sec.
Specifications
Parameters |
Value |
Photo detector |
PSD Si |
Usable beam
size range |
<22.5 mm |
Position
measurement range |
22.5 x 22.5 mm |
Operating
temperature |
0° - 35° C |
Wavelength |
350 - 1100 nm |
Position
resolution |
Better than ±2
μm (with averaging) |
Position
accuracy |
±50 μm over
calibrated area |
Angle
measurement range |
±2° |
Angle
resolution |
±1 sec |
Power range |
100 μW - 5 mW
(without filters) |
Power accuracy |
±5% |
Interface |
USB 2.0 |
CW beams only |
