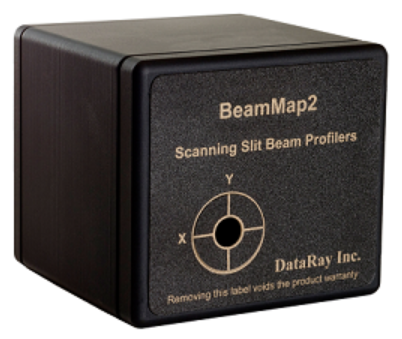

BeamMap2 – XYZΘΦ Scanning Slit Beam Profiler System


190 to 1150 nm, Silicon detector
650 to 1800 nm, InGaAs detector
1000 to 2300 or 2500 nm, InGaAs (extended) detector
Multiple plane spacing options available – please review this worksheet to identify the correct plane spacing for your application
Beam diameters 5 µm to 4 mm, to 2 µm in Knife Edge mode*
Port-powered USB 2.0; flexible 3 m cable, no power brick
0.1 µm sampling and resolution
Linear & log X-Y profiles, centroid
Profile zoom & slit width compensation
Real-time multiple Z plane scanning slit system
Real-time XYZ profiles, Focus position
Real-time M², Divergence, Collimation, Alignment
Application Laser printing & marking
Medical lasers
Diode laser systems
Fiber optic telcom assembly focusing – LensPlate2™ option for re-imaging waveguides and fiber ends
Development, production, field service
CW; Pulsed lasers, F µm = [500/(PRR in kHz)]
Download
관심제품등록

Product Info


Multiple Z-plane XYZΘΦ Scanning Slit, 190 – 2500* nm

Port-powered USB 2.0
