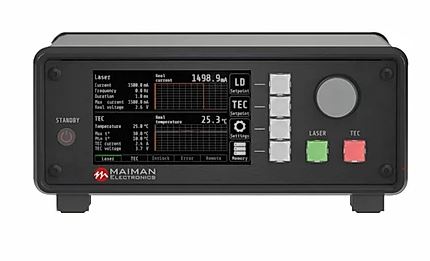

CURRENT, VOLTAGE & TEC CONTROLLER

• Output current LD (I): 1500 mA
• Output voltage LD (V): 0.5-3 V
• Setpoint Resolution: 0,1mA
• Rise Time: <4000 μs
• Fall Time: <8000 μs
• Current stability: 0.1 %
• Current set accuracy: < +/- 1 %
• Output current noise: 10-15 µA
• ТЕС output current: ±4А
• TEC output voltage: ±4V
• TEC output current ripple: 2 ~ 4mА
• TEC Feedback Sensor: 10 kOhm NTC
• Temperature Control Range: +15 to +40 °C
• Air Cooling

Laser Diode Protection

• Soft-Start Current Ramp
• Current Protection
• Temperature Protection
• Reverse current protection
• ESD and transient protection

DIMENSIONS AND WEIGHT

• Dimensions: 257 x 271 x 116 mm
• Weight: 3.4 kg

USER INTERFACE

• Front Panel (Touch Screen or Buttons)
• USB

INPUT

• Single Phase 100-240 VAC, 50Hz

PACKAGE SET

• Laser diode power supply – 1 pcs
• Power cord – 1 pcs
• USB cable – 1 pcs
• Interlock connector – 1 pcs
• Datasheet & User Manual – 1 pcs

WARRANTY PERIOD

• 1-year manufacturer's warranty
