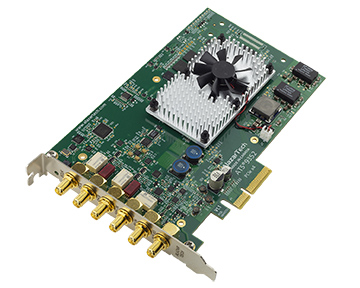

12-bit,500 MS/s waveform digitizer board


-. 500 MS/s Real Time Sampling per channel
-. 1.6 GB/s throughput across PCIe Gen2 x4 bus
-. 2 channels sampled at 12 bit resolution
-. Up to 250 MHz full power bandwidth
-. Variable Input Range from ±100 mV to ±4 V
-. NIST- and CNRC-Traceable Calibration
-. Continuous Streaming Mode
-. 256 Megasamples of Dual-Port Memory per channel
-. Trigger Input & Trigger Output connectors
-. Half-Length PCIe Card
-. AlazarDSO Software allows quick start-up
-. SDK for C/C++, C#, Python, MATLAB, and LabVIEW
-. Support for Windows & Linux
Application -. Optical Coherence Tomography (OCT)
-. Ultrasonic & Eddy Current NDT/NDE
-. Radar/RF Signal Recording
-. Terabyte Storage Oscilloscope
-. High-Resolution Oscilloscope
-. Lidar
-. Spectroscopy
-. Multi-Channel Transient Recording
Download
관심제품등록

Product Info


ATS9352 - 12 bit, 500 MS/s

You may be eligible for a 30-Day Try-Before-You-Buy Evaluation program.

You may be eligible for a 30-Day Try-Before-You-Buy Evaluation program.

Click here to find out whether your organization is eligible for this program.

+ Accessories & Optional Software

+ Options & Extended Warranties
