- 전자장치 | Electronics > Digitizer Board for OCT system
| Product |
12 bit, 4 GS/s waveform digitizer board 4 GS/s 12-bit A/D conversion 6.8 GB/s throughput across x8 PCIe Gen3 2 channel operation at 2 GS/s 4096 point On-FPGA FFT Engine 8 Gigabytes of on-board Dual-Port Memory Variable frequency external clock capable Optional 1.9 GHz full power bandwidth Fixed ±400 mV Input Range 57.1 dB Signal to Noise Ratio Continuous Streaming Mode Trigger Input & Trigger Output connectors Half-Length PCIe Gen3 x8 Card AlazarDSO Software allows quick start-up SDK for C/C++, C#, Python, MATLAB, and LabVIEW Support for Windows & Linux |
|
| Application |
Optical Coherence Tomography (OCT) Ultrasonic & Eddy Current NDT/NDE RF Signal Recording & Analysis Terabyte Storage Oscilloscope High-Resolution Oscilloscope Spectroscopy Multi-Channel Transient Recording |
|
| Download | ||
Product Info
Features:
- 4 GS/s 12-bit A/D conversion
- 6.9 GB/s throughput across x8 PCIe Gen3
- 2 channel operation at 2 GS/s
- 4096 point On-FPGA FFT Engine
- 8 Gigabytes of on-board Dual-Port Memory
- Variable frequency external clock capable
- Optional 1.7 GHz full power bandwidth
- Fixed ±400 mV Input Range
- 57.1 dB Signal to Noise Ratio
- Continuous Streaming Mode
- Trigger Input & Trigger Output connectors
- Half-Length PCIe Gen3 x8 Card
- AlazarDSO Software allows quick start-up
- SDK for C/C++, C#, Python, MATLAB, and LabVIEW (sold separately)
- Support for Windows & Linux

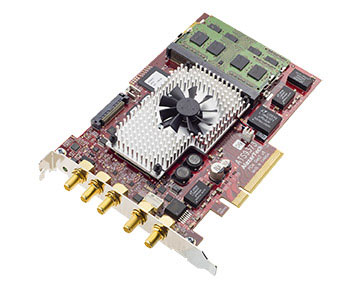

ATS9373 - 12 bit, 4 GS/s
ATS9373 is a 12-bit waveform digitizer board that can sample one analog input at rates up to 4 GS/s or two inputs at 2 GS/s.
With on-FPGA FFT signal processing and data throughput as fast as 6.9 GB/s (6900 MB/s), ATS9373 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.
