- 센서 | Sensor > Laser Range Finder
| Product |

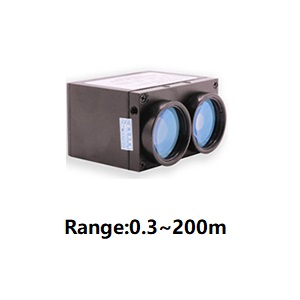

0.3~200m Laser Range Finder Sensor -. Industry 4.0, Industrial automation, Tower Crane safety control -. Car license recognition, Car/passenger behavior monitoring etc -. Car forward and rear collision warning system -. Flight altitude measurement, Anti-colli-sion sensors, UAVnavigation etc |
|
| Application |
-. Wide operating temperature range -. High accuracy and high measuring-frequency -. Real time measurement -. Waterproof IP67 -. Low power consumption -. Friendly interfaces -. Compactness -. High reliability -. LRF |
|
| Download |
|
|
Product Info
Application：
Industry 4.0, Industrial automation, Tower Crane safety control
Car license recognition, Car/passenger behavior monitoring etc
Car forward and rear collision warning system
Flight altitude measurement, Anti-colli-sion sensors, UAVnavigation etc
Features：
Wide operating temperature range
High accuracy and high measuring-frequency
Real time measurement
Waterproof IP67
Low power consumption
Friendly interfaces
Compactness
High reliability
- Accuracy: ±(0.1-0.3)
- Repeatable Accuracy: ±0.1m
- Resolution: 0.1m
- Frequency: 200/1000Hz
- Range: 0.3-200m
- Laser Wavelength: 905nm
- Laser Class: Class1
- Voltage: DC9-36V
- Power Consumption: <1W
- Bean Angle: 7-8mrad
- Baud: 115200bps
- Data Interface: RS232/RS485/0-5V/TTL
- Operating Temperature: -30～+60℃
- Storage Temperature: -40～+70℃
- Water and Dust Proof: IP67
- Can Material: Al alloy (black)
- Dimensions: 60 x 63 x 35mm
- Installation Dimensions: –
- Weight: 500g
- Eyepiece: –
