- 센서 | Sensor > Laser Range Finder
| Product |

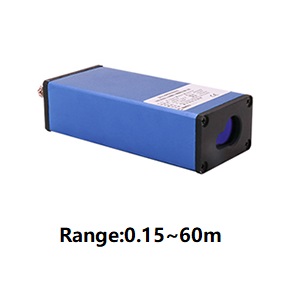

0.15-60m Laser Range Finder Sensor -. High accuracy -. Friendly interfaces -. Compactness -. High measuring-frequency -. Waterproof IP67 |
|
| Application |
-. recisely Postioning -. Material level real-time monitoring -. Car license recognition, Car/passenger behavior monitoring etc -. Auto-focus -. LRF |
|
| Download |
|
|
Product Info
Application：
Precisely Postioning
Material level real-time monitoring
Car license recognition, Car/passenger behavior monitoring etc
Auto-focus
Features：
High accuracy
Friendly interfaces
Compactness
High measuring-frequency
Waterproof IP67
- Accuracy: ±1.0mm (<10m) ; ±2.0mm (>10m)
- Repeatable accuracy: ±1mm
- Resolution: 0.5mm
- Frequency: 10Hz(optional)
- Range: White subject indoor:0.15-60m(optional)
- Wavelength: 650nm
- Laser Class: Class1
- Beam angle: <1 mrad
- Baud: –
- Data interface: RS232/RS485/TTL/4-20mA Optical fiber interface
- Operating temperature: -30～+60℃
- Storage temperature: -40～+70℃
- Water and dust proof: IP67
- Can material: Al alloy (blue)
- Dimensions: 125*55*35 mm
- Installation dimensions: 4-M3*H5 mm
- Weight: 500g
- Power consumption: <1W
- Voltage: DC9-24V
