- 센서 | Sensor > Laser Range for LiDAR
| Product |

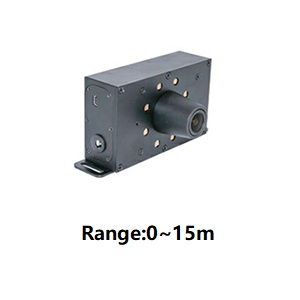

0~15m Laser Range Lidar -. Clear lmaging -. High accuracy -. High measuring-frequency -. Friendly interfaces, user-friendly -. Compactness -. Vehicle Radar -. Video surveillance -. Position sensing -. Entrance head counting |
|
| Application |
-. Face recognition, Gesture recognition -. Warehouse automation, 3D mapping -. ADAS Anti-collision, Passenger monitor-ing -. Car license recognition, Car/passenger behavior monitoring etc -. LRF |
|
| Download |
|
|
Product Info
Application：
Face recognition, Gesture recognition
Warehouse automation, 3D mapping
ADAS Anti-collision, Passenger monitor-ing
Car license recognition, Car/passenger behavior monitoring etc
Features：
Clear lmaging
High accuracy
High measuring-frequency
Friendly interfaces, user-friendly
Compactness
Vehicle Radar
Video surveillance
Position sensing
Entrance head counting
Accuracy: ±0.05m
Repeatable accuracy: ±0.05m
Resolution: 0.03m
Frequency: 120Hz
Range: 0~15m
Laser wavelength: 850nm
Laser class: Class 1
Beam angle: 130°
Power consumption: 1.5W
Voltage: DC24
Baud: –
Data interface: USB
Operating temperature: -30~+60℃
Storage temperature: -40~+70℃
Water and dust proof: IP45
Case material: AL alloy (black)
Dimensions: 135*66*43.6 mm
Installation dimensions: 121*18-M4
