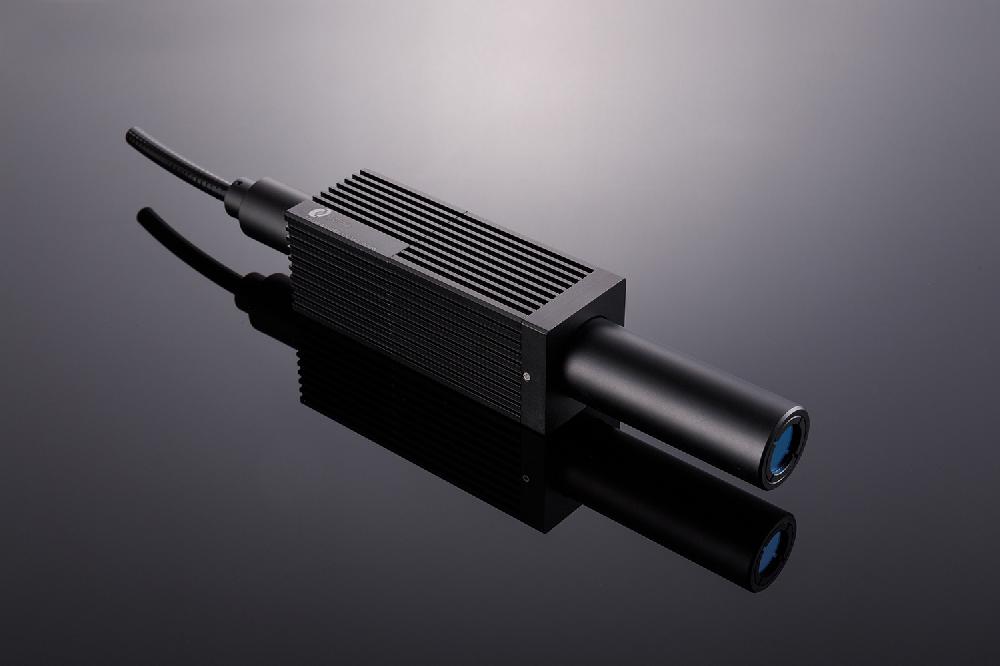

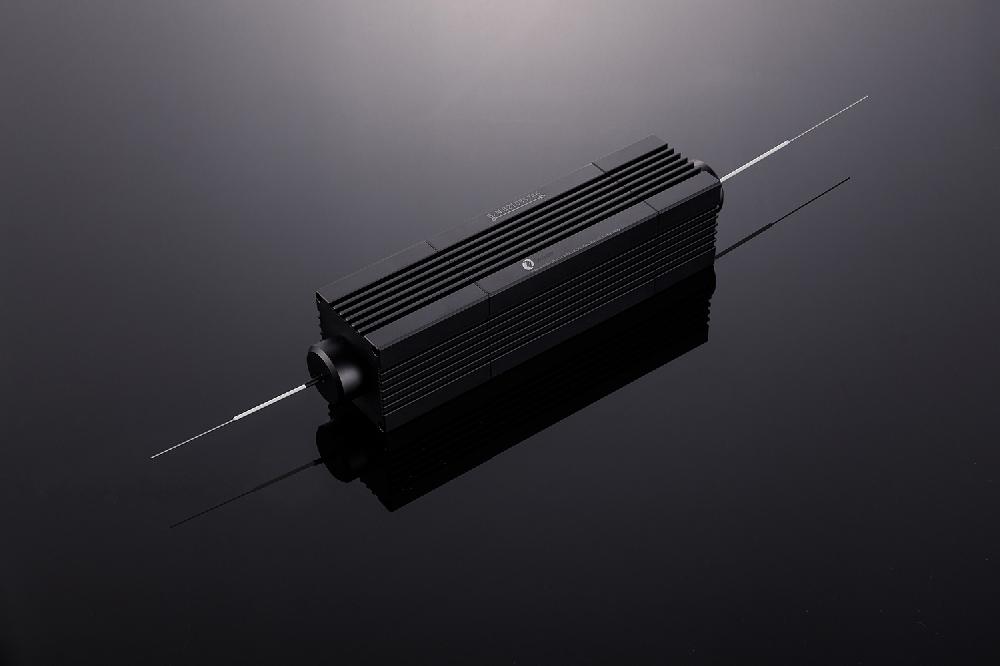

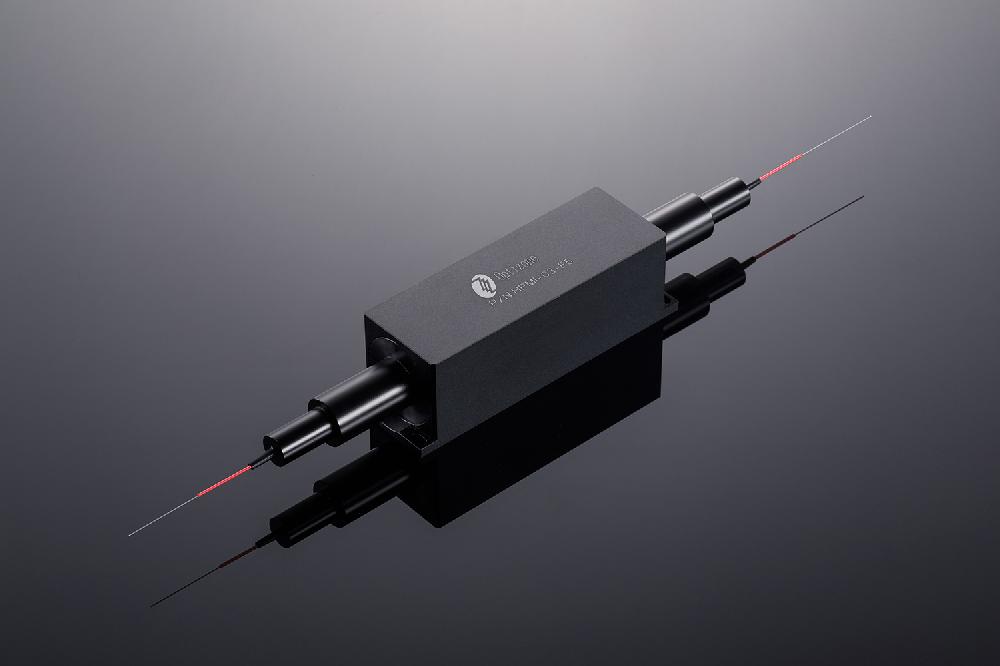

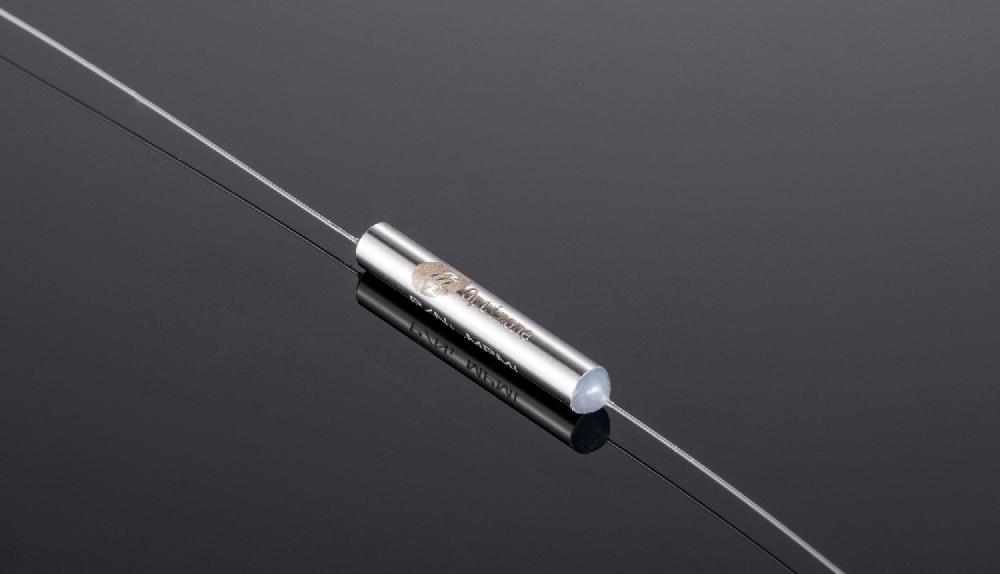

Optical isolator High isolation • Low insertion loss • Fast axis blocked |
|
| Application | • Light-sources isolation | |
| Download |
|
|
Product Info
Typical parameters of fiber optical isolators
|
Part number |
Stage |
Wavelength |
Peak |
Insertion |
Return |
Extintion |
Direct optical |
Fiber |
Package size |
|
nm |
dB |
dB |
dB |
dB |
W |
mm |
|||
|
single |
780 |
30 |
1 |
50 |
20 |
0.3 |
PM780 |
91x27x28 |
|
|
PMOI-808-SS |
single |
808 |
30 |
1 |
50 |
20 |
0.3 |
PM780 |
91x27x28 |
|
PMOI-850-SS |
single |
850 |
35 |
1 |
50 |
20 |
0.3 |
PM850 |
91x27x28 |
|
PMOI-980-SS |
single |
980 |
35 |
1 |
50 |
20 |
0.3 |
PM980 |
91x27x28 |
|
PMOI-1025-SS-HP |
single |
1025 |
30 |
1.2 |
50 |
20 |
1 |
PM980 |
118x37x35 |
|
HIOI-1025-SS-HP |
single |
1025 |
30 |
1.2 |
50 |
1 |
HI1060 |
118x37x35 |
|
|
PMOI-1030-SS-HP |
single |
1030 |
26 |
1 |
50 |
20 |
1 |
PM980 |
118x37x35 |
|
HIOI-1030-SS-HP |
single |
1030 |
26 |
1 |
50 |
1 |
HI1060 |
118x37x35 |
|
|
PMOI-1030-SS |
single |
1030 |
22 |
4.7 |
55 |
23 |
0.08 |
PM980 |
55×5.5×5.5 |
|
HIOI-1030-SS |
single |
1030 |
22 |
4 |
55 |
0.08 |
HI1060 |
55×5.5×5.5 |
|
|
PMOI-1040-SS-HP |
single |
1040 |
35 |
1 |
50 |
20 |
1 |
PM980 |
118x37x35 |
|
HIOI-1040-SS-HP |
single |
1040 |
35 |
1 |
50 |
1 |
HI1060 |
118x37x35 |
|
|
PMOI-1040-SS |
single |
1040 |
30 |
4.2 |
55 |
23 |
0.1 |
PM980 |
55×5.5×5.5 |
|
HIOI-1040-SS |
single |
1040 |
30 |
4.2 |
55 |
23 |
0.1 |
PM980 |
55×5.5×5.5 |
|
single |
1050 |
50 |
2.5 |
50 |
20 |
1 |
PM980 |
118x37x35 |
|
|
PMOI-1050-SS |
single |
1050 |
40 |
2.9 |
55 |
23 |
0.15 |
PM980 |
55×5.5×5.5 |
|
PMOI-1055-SS-HP |
single |
1055 |
35 |
1 |
50 |
20 |
1 |
PM980 |
118x37x35 |
|
HIOI-1055-SS-HP |
single |
1055 |
35 |
1 |
50 |
1 |
HI1060 |
118x37x35 |
|
|
PMOI-1055-SS |
single |
1055 |
40 |
2.6 |
55 |
23 |
0.2 |
PM980 |
55×5.5×5.5 |
|
HIOI-1055-SS |
single |
1055 |
40 |
2.6 |
55 |
0.2 |
HI1060 |
55×5.5×5.5 |
|
|
HIOI-1064-SS-HP |
single |
1064 |
26 |
1 |
55 |
1-5 |
HI1060 |
35x5x5 |
|
|
single |
1064 |
40 |
1.8 |
55 |
23 |
0.3 |
PM980 |
55×5.5×5.5 |
|
|
HIOI-1064-SS |
single |
1064 |
40 |
1.8 |
55 |
0.3 |
HI1060 |
55×5.5×5.5 |
|
|
PMOI-1064-DS |
double |
1064 |
55 |
3.2 |
55 |
20 |
0.3 |
PM980 |
55×5.5×5.5 |
|
PMOI-1085-SS-HP |
single |
1085 |
35 |
1 |
50 |
20 |
1 |
PM980 |
118x37x35 |
|
HIOI-1085-SS-HP |
single |
1085 |
35 |
1 |
50 |
1 |
HI1060 |
118x37x35 |
|
|
PMOI-1085-SS |
single |
1085 |
30 |
1.8 |
55 |
23 |
0.3 |
PM980 |
55×5.5×5.5 |
|
HIOI-1085-SS |
single |
1085 |
30 |
1.8 |
55 |
0.3 |
HI1060 |
55×5.5×5.5 |
|
|
PMOI-1095-SS-HP |
single |
1095 |
30 |
1 |
50 |
20 |
1 |
PM980 |
118x37x35 |
|
HIOI-1095-SS-HP |
single |
1095 |
30 |
1 |
50 |
1 |
HI1060 |
118x37x35 |
|
|
PMOI-1095-SS |
single |
1085 |
28 |
1.8 |
55 |
23 |
0.3 |
PM980 |
55×5.5×5.5 |
|
HIOI-1095-SS |
single |
1085 |
28 |
1.8 |
55 |
0.3 |
HI1060 |
55×5.5×5.5 |
|
|
PMOI-1120-SS |
single |
1120 |
30 |
1.7 |
50 |
21 |
0.3 |
PM980 |
55×5.5×5.5 |
|
PMOI-1120-DS |
double |
1120 |
40 |
2.8 |
50 |
21 |
0.3 |
PM980 |
55×5.5×5.5 |
|
PMOI-1150-SS |
single |
1150 |
20 |
2 |
55 |
20 |
0.3 |
PM980 |
55×5.5×5.5 |
|
PMOI-1150-DS |
double |
1150 |
30 |
2.8 |
55 |
20 |
0.3 |
PM980 |
55×5.5×5.5 |
|
PMOI-1178-DS |
double |
1178 |
25 |
2 |
50 |
20 |
0.35 |
PM980 |
55×5.5×5.5 |
|
PMOI-1188-DS |
double |
1188 |
20 |
2.1 |
50 |
20 |
0.35 |
PM980 |
55×5.5×5.5 |
|
PMOI-1250-DS |
double |
1250 |
30 |
1.2 |
55 |
23 |
0.4 |
PM980 |
55×5.5×5.5 |
|
PMOI-1310-DS |
double |
1310 |
58 |
0.6 |
55 |
23 |
0.5 |
PM1300 |
55×5.5×5.5 |
