BXZ MOT Series – Motorized Zoom Beam Expander


Fast ADjustment between each magnification : 5 sec
Baud Rate : 9600 bit/sec
Power Input : 9V
Interface: RS232 and USB
Pointing Stability : <1 mrad
Application
Download
관심제품등록

Product Info

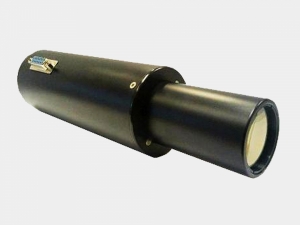

BXZ MOT Series – Motorized Zoom Beam Expander

Motorized Zoom beam expanders can be used to expand or contract the laser beam. The lens group will move automatically to their calculated positions by electronic and software control. They have short set-up time and allow quick and precise change of laser beam parameters in on-going production. They also have high pointing stability. Suitable mounting stages for easy holding and adjustment are available.

Part No.MagnificationMax. Input Beam (mm)Input CA (mm)Output CA (mm)Length (mm)TypeWavelength (nm)
BXZ-266-1-8X-MOT1x-8x3.10.032.0136.0Motorized266
BXZ-355-1-8X-MOT1x-8x3.10.032.0136.0Motorized355
BXZ-532-1-8X-MOT1x-8x3.10.032.0159.0Motorized532
BXZ-1064-1-3X-MOT1x-3x5.16.038.0199.0Motorized1064
BXZ-1064-1-8X-MOT1x-8x3.12.032.0159.0Motorized1064
BXZ-1064-1-8X-WIFI1x-8x3.12.032.0288.5Motorized1064
BXZ-1550-0.5-5X-MOT0.5x-5x4.6.040.0225.9Motorized1550
BXZ-1550-1-4X-MOT1x-4x4.14.028.0277.0Motorized1550
