Product Info

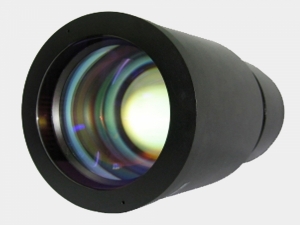

Achromatic Telecentric Scan Lens





With CCD camera been equipped into laser scanning system, Achromatic scan lens is
developed to colour correct different wavelengths.



The focal length, working distance and focus spot are identially for both laser working
wavelength and visible wavelength, it will help CCD to capture the actual image through
F-theta scan lens, generally low dispersion crown glass and high dispersion flint glass are
jointly used to correct the chromatic aberration.





Part No.

EFL (mm)

Scan Angle (±°)

Scan Field (mm)

Ent. Pupil (mm)

Length (mm)

Working Distance (mm)

Wavelength (nm)

Window Size

TSL-1064-660-60-163

163

15

60*60

15

158.3

108.9

1064/660

106*3

TSL-355-635-50-120

120

25

50*50

6

99.5

85.5

355/635

-

TSL-532-635-50-120A

120

17

50*50

15

194.1

52

532/635

120*2.3

TSL-532-635-60-150A

150

17

60*60

15

193.6

79.5

532/635

120*2.3
