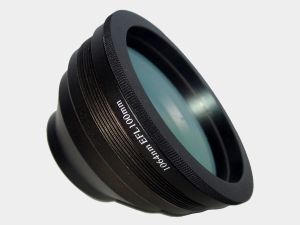

F-Theta Scan Lens --- Nd:YAG, Green & UV Laser



In most of the cutting edge laser machinery, laser optics will be incorporated into system to realize various applications like marking, drilling, welding, dicing, scribing, cutting, engraving etc. F-theta scan lens is used in conjunction with XY galvanometer scanner and beam expander to form a two dimensions scanning system. The scan lens is optimized to provide a flat field image with diffraction-limited spot size in micron scale over the entire scan field. The image field height is almost directly proportional to the scan angle. Typically, the linearity f-theta distortion is kept less than 1% without software correction to ensure minimal distortion. High transmissive AR coating is coated onto the lens elements surface to ensure minimal power loss and hence increase the throughput. The scan lenses are designed with a industrial standard M85x1 mount threading to facilitate lens installation into laser machine. To accommodate different standard mount thread, mount adaptors are available for ease of conversion. Most of our products are RoHS compliant unless otherwise stated.



Aperture Stop is set at center point of X-Y mirror in case of two-axis scanning system.







F-Theta Scan Lens 1064nm - by Optical Glass

Part No.

EFL
(mm)

Scanning Angle (±°)

Scan Length (mm)

Scan Field (mm)

Ent. Pupil (mm)

Length
(mm)

WD
(mm)

Screw
Thread

Window
Size

SL-1064-40-80

80

25

56.5

40x40

25

90.75

76.98

M85x1

102x2

SL-1064-45-80

80

23

63

45x45

10

29.2

91.4

M55x1

47x2

SL-1064-70-100

100

25

87

70x70

14

49.5

98.8

M85x1

76x3

SL-1064-80-111.5

111.5

25

112

80x80

10

56.7

123

M79x1

93x2.5

SL-1064-65-125

125

21.3

91

65x65

15

54.5

146.6

M85x1

83x3

SL-1064-105-152

152

25

132

105x105

10

48

175

M85x1

78x1.5

SL-1064-110-160B

160

28

156

110x110

12

42.4

187.1

M85x1

76x3

SL-1064-50-160

160

18

80

50x50

8

27

182.3

M39x1

43x2

SL-1064-F160B

160

27.6

155

110x110

12

48.8

182.9

M85x1

75x1.6

SL-1064-F160-30

160

18

99

70x70

30

84.3

172.2

M100x1

116x3

SL-1064-112-163

163

25

142

112x112

10

49

184.9

M85x1

76x3

SL-1064-112-163A

163

25

159

112x112

14

47

182.1

M85x1

76x3

SL-1064-107-163

163

18.6

151

107x107

12

43.2

181.2

M85x1

75x1.6

SL-1064-114-163R1

163.3

25

161

114x114

15

53.9

184

M85x1

76x3

SL-1064-F165-25

165

22.5

141

100x100

25

93.7

197.1

M85x1

126x3

SL-1064-120-170

170

29

169.7

120x120

20

60.6

195.8

M85x1

110x2.5

SL-1064-152-192

192

32

215

152x152

15

63

221.8

3.875''-32

128x2

SL-1064-F201-30

201

6.6

42

30x30

30

82.7

243

M85x1

123x3

SL-1064-140-210

210

25

197

140x140

14

50

238.4

M85x1

86x2.5

SL-1064-160-210

210

25

226

160x160

10

50

246.2

M85x1

94x2.5

SL-1064-F254B

254

23

247

175x175

10

50

280

M85x1

75x2

SL-1064-F254-30

254

16.1

141

100x100

30

66.1

303.3

M85x1

110x2.5

SL-1064-175-254

254

25

247.5

175x175

16

61.7

288.9

M85x1

97x2.5

SL-1064-180-260

260

25

254

180x180

10

63

297

M85x1

97x2.5

SL-1064-F310-25

310

26

282

200x200

25

78.1

352.3

M85x1

120x3

SL-1064-220-330G

330

26.8

311

220x220

12

39.9

378.5

M85x1

72x2

SL-1064-205-330

330

25

290

205x205

14

60

385

M85x1

98x2.5

SL-1064-305-338

338

36.5

431

305x305

15

52.5

398.1

3.875''-32

128x2

SL-1064-300-420

420

29

424.4

300x300

14

69.4

492

M85x1

110x2.5

SL-1064-320-420

420

30

452.5

320x320

30

165.4

391.8

M150x1

204x4

SL-1064-400-525

525

30

565.6

400x400

10

43

597.3

M79x1/M85x1

88x2.5

SL-1064-330-580

580

23

466

330x330

10

47.4

709.5

M85x1

83x3

SL-1064-500-815

815

25

710

500x500

24

106.9

962

M85x1

150x3



 SLF-1064nm Fiber Scan Lens - by Optical Glass



Part No.

EFL (mm)

Scanning Angle (±°)

Scan Length (mm)

Scan Field (mm)

Ent. Pupil (mm)

Length (mm)

WD (mm)

Screw Thread

Window Size

SLF-1064-63-8

63

25.5

51

36x36

8

26.8

69

M39x1

35x2

SLF-1064-100-8

100

25

84.8

60x60

8

35

117.9

M39x1

50x1.5

SLF-1064-160-8

160

25

141

100x100

8

30.8

188.1

M39x1

45x2

SLF-1064-254-8

254

25

220

155x155

8

43

293.6

M39x1

55x2







F-Theta Scan Lens 532nm - by Optical Glass



Part No.

EFL (mm)

Scanning Angle (±°)

Scan Length (mm)

Scan Field (mm)

Ent. Pupil (mm)

Length (mm)

WD (mm)

Screw Thread

Window Size

SL-532-70-100

100

25

87

70x70

14

47.1

100.9

M85x1

74x2.5

SL-532-90-120A

120

25

116

80x80

8

38.9

134

M85x1

57x2.5

SL-532-150-254

254

25

220

150x150

10

51

280

M85x1

97x3

SL-532-150-254B

254

24

212

150x150

10

49

294

M85x1

74x2.5

SL-532-225-410

410

25

366

225x225

14

48.9

443.7

M85x1

80x4

SL-532-335-520

520

23.5

502

355x355

16

57.4

599.2

M102x1/M85x1

118x3

SL-532-500-750

750

27.7

707

500x500

16

97

911.2

M85x1

152x3







High Power Fiber Laser Scan Lens 1030-1090nm - by Fused Silica



Part No.

EFL (mm)

Scanning Angle (±°)

Scan Length (mm)

Scan Field (mm)

Ent. Pupil (mm)

Length (mm)

WD (mm)

Screw Thread

Window Size

SL-HF-142-277

277

21

200

142x142

15

66.1

347.5

M85x1

96x2.5

SL-HF-280-420

420

13.5

396

280x280

14

66.6

506.3

M85x1

110x2.5







F-Theta Scan Lens 1064nm - by Fused Silica



Part No.

EFL (mm)

Scanning Angle (±°)

Scan Length (mm)

Scan Field (mm)

Ent. Pupil (mm)

Length (mm)

WD (mm)

Screw Thread

Window Size

SL-1064-215-340Q

340

25

304

215x215

20

174.6

203.82

M85x1

140x3.5







F-Theta Scan Lens 532nm - by Fused Silica



Part No.

EFL (mm)

Scanning Angle (±°)

Scan Length (mm)

Scan Field (mm)

Ent. Pupil (mm)

Length (mm)

WD (mm)

Screw Thread

Window Size

SL-532-74-113Q

113

27.2

104

74x74

6

65.8

140.5

M85x1

84x2

SL-532-90-163Q

163

22.8

127

90x90

10

77.2

204.5

M85x1

96x3

SL-532-115-165Q

165

29.4

163

115x115

10

77.1

220.6

M85x1

74x2.5







F-Theta Scan Lens 355nm - by Fused Silica



Part No.

EFL (mm)

Scanning Angle (±°)

Scan Length (mm)

Scan Field (mm)

Ent. Pupil (mm)

Length (mm)

WD (mm)

Screw Thread

Window Size

SL-355-60-110Q

110

23.8

84

60x60

6

50.8

137.4

M55x1

-

SL-355-105-170Q

170

27

148

105x105

6

50.9

216.1

M85x1/M55x1

76x3

SL-355-155-250

250

25.5

220

155x155

10

54.9

299.8

M85x1

82x2

SL-355-F290-20

290

25.5

255

180x180

20

65

332.5

M85x1

99x2

SL-355-180-295A

294.4

25

256

180x180

10

45.3

359

M85x1

84x2

SL-355-180-295

295

25

254

180x180

10

55.9

362.8

M85x1

82x2

SL-355-210-328

328

26.4

296

210x210

10

79.6

406.4

M85x1

114x2

SL-355-250-410

407.5

25

354

250x250

10

46.8

488.2

M85x1

86x2

SL-355-350-580

580

24.5

496

350x350

10

64.6

682.8

M85x1

106x3

SL-355-500-815

815

25

707

500x500

10

83.2

976.4

M85x1

107x3

SL-355-650-1000

1000

26.5

919

650x650

10

91.9

1200.1

M85x1

132x3





F-Theta Scan Lens 266nm - by Fused Silica



Part No.

EFL (mm)

Scanning Angle (±°)

Scan Length (mm)

Scan Field (mm)

Ent. Pupil (mm)

Length (mm)

WD (mm)

Screw Thread

Window Size

SL-266-70-100

100

30

99

70x70

5

59.9

132.9

M85x1/M55x1

76x2

SL-266-100-160

162.3

25

141

100x100

5

36.8

198.8

M85x1

62x2

SL-266-90-254

254

18

156

90x90

4

47

253

M85x1

82x2
