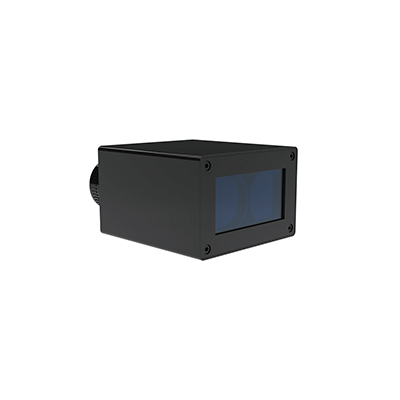

0.5~600m Laser Range Finder Sensor -. Long distance -. High accuracy -. Real time measurement -. Waterproof IP67 -. Low power consumption -. Friendly interfaces -. Compactness |
|
| Application |
-. Range measurement, Radar -. Intrusion detection alarm system -. Real-time positioning, covering wide range -. LRF |
|
| Download |
|
|
Product Info
Application：
Range measurement, Radar
Intrusion detection alarm system
Real-time positioning, covering wide range
Features：
Long distance
High accuracy
Real time measurement
Waterproof IP67
Low power consumption
Friendly interfaces
Compactness
- Accuracy: ±1m
- Repeatable accuracy: ±1m
- Resolution: 0.5m
- Frequency: 5Hz
- Range: 0.5-600m
- Laser wavelength: 905nm
- Laser Class: Class1
- Voltage: DC8-12V
- Power consumption: <2W
- Bean angle: <5mrad
- Baud: 9600bps
- Data interface: RS232/RS485/4-20mA/Optical fiber interface
- Operating temperature: -30～+60℃
- Storage temperature: -40～+70℃
- Water and dust proof: IP67
- Can material: Al alloy (blue)
- Dimensions: 108*74*56
- Installation dimensions: 68*64 mm; 4-M3/H5 mm
- Weight: 500g
- Eyepiece: –
RFXX0X-C100-0005A2 Laser Range Finder Sensor
Long distance
High accuracy
Real time measurement
Waterproof IP65
Low power consumption
Friendly interfaces
Compactness±1 m Range accuracy ±1 m Repeatable accuracy RF1600-C100-0005A2 RF2001-C100-0005A2 Part number m 0.5 Resolution Hz 5 Frequency <5 mrad Beam angle W <2 Power consumption Class 1 Laser class DC8-12 V Voltage 0.5-600 1-1000 m Range nm 905 Wavelength Parameter Value Unit
Military Application Precise PositioningRS232; RS485/4-20mA/
Optical fiber interfaceData interface -30～ 60 ℃ Operating temperature -40～ 70 ℃ Storage temperature IP65 Water and dust proof Al alloy (blue) Case material mm Dimensions 108x74x56 mm Installation dimensions 68x64; 4-M3/H5 g Weight 500 9600 bps Baud Parameter Value Unit -
Range measurement, Radar
Border Precaution
