- 광섬유 및 광섬유 부품 > Fiber optics current sensors
| Product |

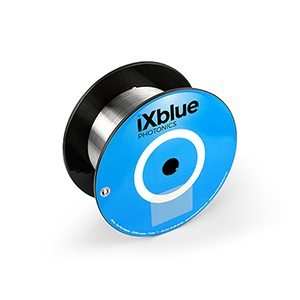

Polarizing Fibers - Polarizing wavelengths availabe: 780, 840, 980, 1060, 1310 or 1550 nm - Fiber diameter: 80 or 125 µm - Tiger design - >100 nm polarizing window - >30 dB extinction ratio |
|
| Application |
- Quantum optics, cold atoms - All-Fiber polarizer - Fiber optic current sens OVERVIEW polarizing optical fiber iXblue Polarizing (PZ) fiber is designed so that only one state of polarization is guided along the fiber; any other state of polarization will be lost rapidly thus yielding a high built-in polarization extinction ratio. This particular mechanism is obtained through a specific waveguide design and a careful optimization of the glass composition resulting in both high birefringence and leakage behavior. PZ fibers are available at different wavelengths with a broad polarizing window (typically larger than 100 nm), low attenuation and high extinction ratio (≥ 30 dB), that can be tuned by coiling the proper fiber length at the appropriate coil diameter. If needed iXblue also offers ready to use polarizing solutions based on PZ fibers. ors and gyros |
|
| Download | ||
