PSD Holder -. High linearity PSD assembled in a mechanical holder# -. Size : 52 x 52 mm2# -. Easily accessed via a DSUB9 connector. |
|
Application | ||
Download |
Product Info

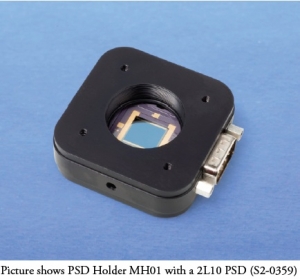

PSD Holder MH01
The SiTek PSD Holder MH01 is a high linearity PSD assembled in a mechanical holder. The mechanical holder has a size of only 52 x 52 mm2 and the PSD is easily accessed via a DSUB9 connector. It is designed to fit Φ1" filters as well as standard optomechanical components, such as posts and lens tubes. To minimize reflections it has a black anodized surface.
The holder is available with SiTek's PSDs ranging from 2.5 ~ 20 mm ( 1D ) and 2 x 2 ~20 x 20 mm2 ( 2D ). SiTek's UV-enhanced PSDs and PSDs with stray light elimination (NT) can be delivered mounted in the PSD mechanical holder upon request.
