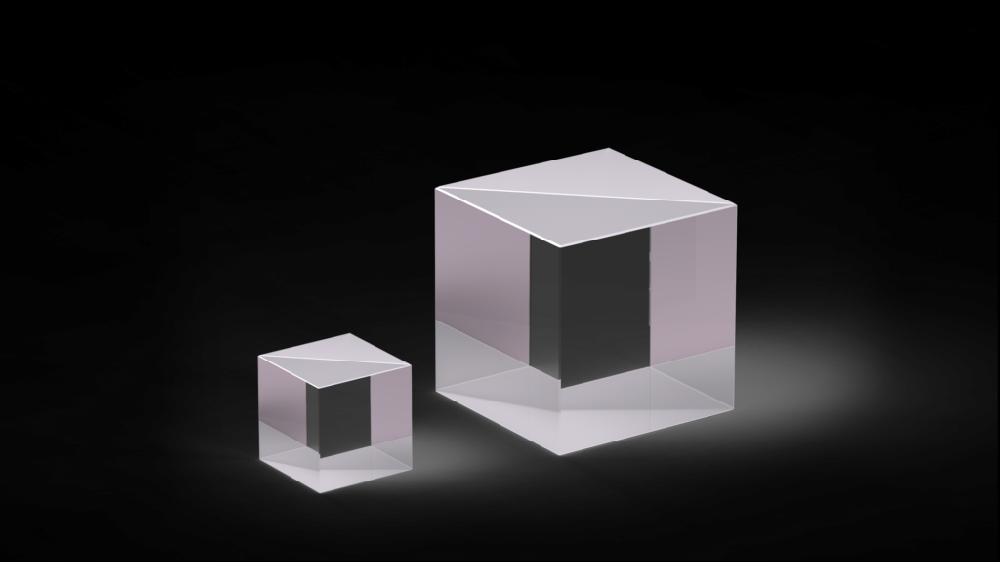

Polarizing Cubes for High Energy Applications Substrate material : UVFS Wavelength range : 250 – 2200 nm Surface quality, S-D : 40-20 Reflected and transmitted wavefront distortion, P-V : <λ/8 @ 632.8 nm Beam deviation : <3 arcmin Extinction ratio Ts/Tp : >1000:1 Transmission @ central wavelength : Tp>97% Reflectance @ central wavelength : Rs>99.5% LIDT : Up to 20 J/cm2 @ 1064 nm, 10 ns, 100 Hz |
|
| Application | ||
| Download | ||
Product Info
Polarizing beamsplitter cubes offer several advantages over plate beamsplitters. They are easy to handle, high contrast and high-extinction-ratio polarizers that split a randomly polarized beam into two orthogonal, linearly polarized components. These products are typically used in laser-beam separation and combination, and optical-isolation applications. The epoxy-free construction of the cubes enables a superior performance at high energy levels.
Features:
-. Easy, deformation-free mounting
-. High extinction ratio in transmission: Ts/Tp >1000:1
-. Low reflected and transmitted wavefront distortion
-. No ghost reflections
-. Minimal beam displacement
-. Negligible absorption of reflected and transmitted beams
-. High transmission of p-polarization: Tp > 97%
-. For collimated beams only
-. Input and output surfaces are AR-coated for specified wavelengths
-. Custom sizes are available on request
